The Best Usb Screen For Laptop Adpater

Introduction：
This adapter can obtain high-definition audio and video images through the computer’s USB interface, and can output 2 different images at the same time. Applicable to data comparison, securities monitoring and other fields.

Features：
Support Windows 7/8/8.1/10, XP (32bit), Vista (32bit) MAC OS, Chrome OS
Support 1 USB input interface
Support 1 channel 3.5mm stereo output
Support 2 HDMI output interfaces
Output resolution up to 1920*1080p@60Hz
Support USB3.0 and USB2.0 interface
USB cable length 50cm

Steps for usage：
1 Connect the USB port of the adapter to the USB port of the computer
2 Connect the "OUTB" and "OUTA" of the adapter to your monitor, TV, or projector with 2 HDMI cables.
3 Connect the headphone or sound system to the adapter’s 3.5mm jack
4 Download and install the appropriate driver for the operating system and version
(Driver download address: https://www.displaylink.com/downloads)
5 Please restart your computer after the driver installation is completed

Note：
The DisplayLink software driver has been loaded into ChromeOS from the internal version R51 (released in June 2016). All Chromebooks using ChromeOS build R51 or higher can be used with DisplayLink docking stations and adapters without the need to install additional drivers.
This product does not support Window XP (64bit), Vista (64bit) system
After using the 3.5mm stereo output interface, there will be no sound output from OUTA and OUTB
The output HDMI cable should not exceed 5 meters, please use standard cable

Package Contents:
1pcs USB to HDMI Adapter
1pcs User Manual
　

Multi-Tasking Made Easy

This USB-C to HDMI MST hub lets you connect three HDMI monitors to your USB Type-C Windows device, conveniently helping you to increase and maximize your productivity.

With devices becoming more portable than ever, you are limited to fewer video outputs and confined to your small integrated screen. This multi-stream transport hub solves that problem by enabling you to connect three separate displays to your USB-C computer, making multi-tasking much easier. Using this USB C to HDMI video splitter, you can mirror your display onto additional monitors or stream independent content to each display which makes it the ideal accessory for travel or hot-desking environments.

Astonishing Picture Quality

MST technology uses your existing video card to minimize the use of system resources while delivering UHD 4K resolutions for up to two monitors simultaneously. Plus, because the USB-C hub can output HD 1080p on three independent displays, it’s perfect for all high-resolution applications such as graphic design and medical imaging.

Hassle-Free Setup

Multi-stream transport ensures an easy setup by natively working on any Windows device that supports DP Alt Mode over USB Type-C. This USB-C to HDMI adapter is Thunderbolt 3 compatible and allows for plug-and-play use with no drivers or software required. Additionally, this triple monitor adapter is powered by the USB-C port, meaning no external power cords are necessary.

MSTCDP123HD is backed by a StarTech.com 3-year warranty, and free lifetime technical support.

Why choose our USB C to Dual HDMI Adapter?

We have been committed to providing customers with high-quality products and our USB C to Dual HDMI Adapters have undergone rigorous testing before leaving the factory.

Before you purchase it, Please Attention:
1.Please check if your laptop owns a USB Type-c Thunderbolt 3 port and support Display Port Alternate Mode.
2.On Mac devices, ONLY support Mirror Mode, CAN NOT extend two different Screen, due to Mac OS limitation.

Technology Features:

Dual Video Resolution Configurations:
3840×2160@60Hz = 1 display / 3840×2160@30Hz = 2 displays / 2560×1440@60Hz = 2 displays / 1920×1080@60Hz = 2 displays
Mac OS ONLY Support Mirror Mode:
Does not support 2 external displays show different images for Apple computers in extend mode.
Support Windows 10 OS:
Mirror Mode:3 Screens’ image will be the same.
Extend Mode:2 monitors’ image can be same or different.
Support Android OS:
3 Screens’ image will be the same.
FAQ:
How to switch Mac device to Extend Mode?
“Setting” → “Display” → click the “mirror display” box to switch to Extend mode → then you can drag a window of website/movie to the rightest side of your desktop screen until it disappear on your desktop screen and show up on the external monitor screen.
( Important Note: As Apple company itself limited, for Mac OS devices use in extend mode, the image on the two external screens will be the same.)

How to connect Extend Mode for Windows OS?
Right-click desktop→ select Intel display Settings → pop-up Settings screen select display→ select multi-screen display→ expand the desktop
(If the display 3 is not display, please to manually select the display→click apply confirm can set OK).
If one of display does not display, How to do?
Right click desktop > Graphics Settings > Select One or

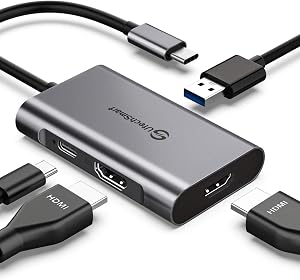

Utechsmart is a group of engineers and designers who are passionate about bringing convenience to our lives with affordable technology. It is our goal to use the highest quality components to ensure you receive an industry-leading product. Never again will you be slowed down by outdated technology.
Features:
1.Crystal-Clear 4K HDMI Display
HDMI port supports whopping 3840*2160 @30Hz magnifying your laptop screen to your TV or large monitors with audio and vivid picture quality.
2. Dual Display
Our Utechsmart usb c to dual hdmi adapter spans your workspace across 2 screens giving you much more flexibility and boosting your productivity. It also supports a single or duplicate HDMI display up to 3840*2160@30Hz .
3. A Brilliant Replacement of Heavy Nintendo switch
Plug and play – enjoy charming rirtual gaming time without crash or flicker. Take with you on the go no matter on friend or family party, picnic or camping. No worry about scratching the screen, overheating the console easily, or warpping it if getting too hot.
4.Fast Data Transfer & Power Delivery 3.0 Charging
This usb c adapter provides high-Speed data transmission with a speed of 5GBPS transferring large data files 10X faster than traditional USB 2.0. The Type-C port can deliver up to 87W power.
Compatible Devices
*Apple MacBook/Apple MacBook Pro (2015/ 2016/ 2017/ 2018)
Apple I Mac/ I Mac Pro (21.5 inch, 27 inch)
*Google Chromebook Pixel (2016/ 2017)
*Microsoft lumen 950/950xl
*Dell XPS12/Dell XPS13/Dell XPS15
*Lenovo Yoga 910/920/720, ThinkPad P50/P70
*Sumsung Chromebook Plus,Samsung Galaxy TabPro S
*LG G5, LG V20, *HTC 10, HTC U 11
*Huawei Mate 20 / 20 Pro, Mate 10 / 10 Pro
*Samsung Galaxy s9/s9+/s8/s8 +,Samsung Note 8
*Nintendo Switch
Incompatible Devices
*HP Elitebook 840 G3
* HP ProBook 450 G1
*iPad Pro 2018
* Asus ROG Strix Scar Edition GL703

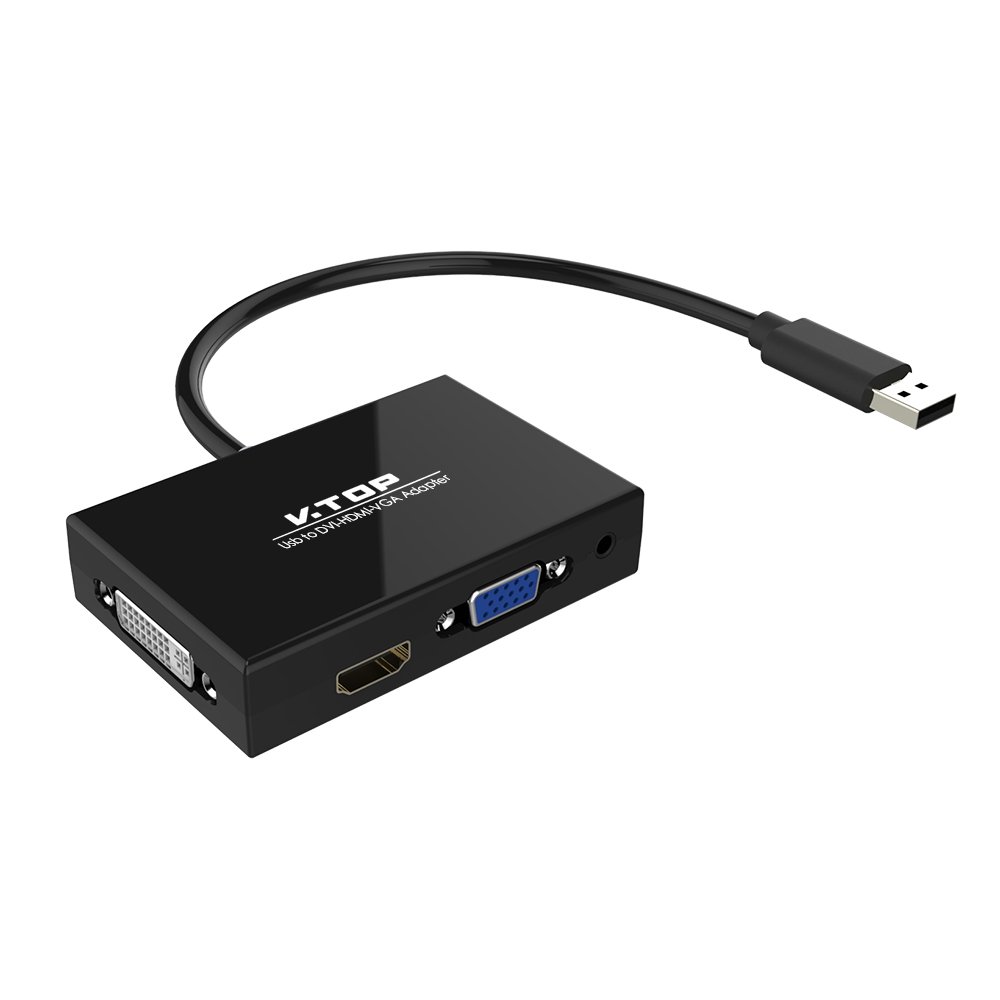

The Dual Monitor External Video Card Adapter lets you add dual HD video outputs, as well as audio connections to any notebook or Ultrabook computer through a single USB 3.0
connection. This USB 3.0 Graphics Card features three external monitor outputs (HDMI, DVI-D and VGA) that can be used in either HDMI and DVI-D, or HDMI and VGA combinations to expand
or mirror your desktop. Each video output supports HD video resolutions (2048×1152 max) and HD video playback for an ideal solution to expanding your notebook’s video capability.

Applications:
■ Add a secondary HDMI and or DVI/VGA display and extend your desktop
■ Add multi-monitor capability to a single computer, to create engaging multimedia presentations
■ Great for researchers and writers offering the ability to have reference material on one display and a working document copy on the other
■ Increase productivity by running multiple applications on different screens – check your email on one display and search the web on the other
■ A compact, lightweight solution for traveling business associates using laptop PCs, enabling connection to a secondary display/projector

Connector(s):
Connector A:1 – USB Type-B (9 pin) USB 3.0 Male Input
Connector B1:1 – DVI-I (29 pin) Female Output;B2:1 – HDMI (19 pin) Female Output

Included in Package:
1 – USB 3.0 to HDMI/DVI/VGA Graphics Adapter
1 – Driver CD
1 -Installation guide

Note:
Due to the fast update of drivers on the market, the original drivers for our products may be relatively backward. Please use the link provided below to download the latest drivers:
www.displaylink.com
