The Best Thermaltake Pure Series Case Cooling

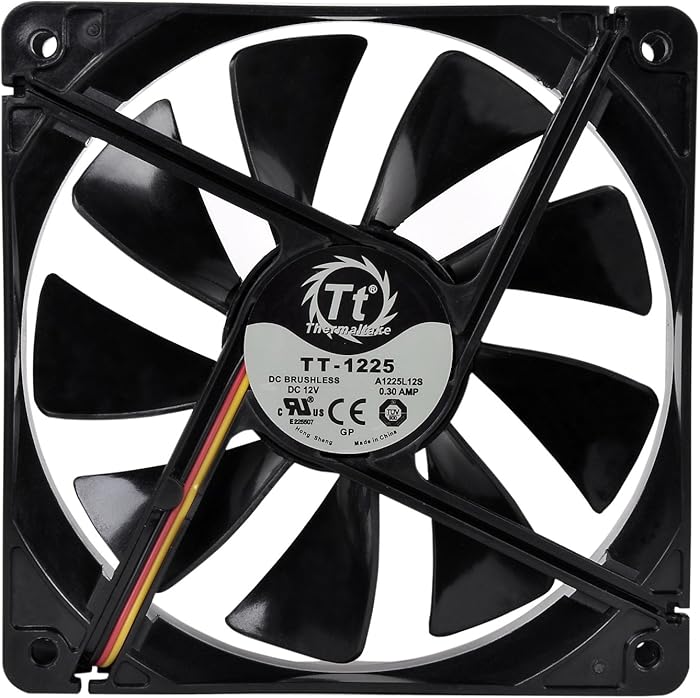

Thermaltake CL-F011-PL12BL-A 120mm Pure Series Quiet High Airflow Case Fan. The Thermaltake Pure 12 fan comes with reliable, stable performance and gorgeous vibrant style. Available in 120mm, the Pure 12 fan offers the perfect balance of silence, style and efficiency.

Thermaltake Pure 20 ARGB sync radiator fan TT Premium Edition features compression blades, hydraulic bearing, and a 16. 8 million colors LED Ring with 9 addressable LEDs that is ready to sync with 5V RGB Capable motherboards from Asus, Gigabyte, MSI and as rock. Users can easily switch RGB lighting effects using the ARGB controller that is included in the packet, or by ASUS AURA Sync, gigabyte RGB FUSION, MSI Mystic Light Sync and as rock polychrome software. Pure 20 ARGB sync radiator fan delivers 16. 8 million-color RGB illumination and unparalleled ventilation.

Thermaltake Riing 12 Series High Static Pressure 120mm Circular LED Ring Case/Radiator Fan with Anti-Vibration Mounting System Cooling CL-F038-PL12BU-A Blue

Thermaltake has released the new Riing 12 LED Series, a 120mm fan fitted to enhance static pressure that produces impressive cooling performance with an optimized fan blade. Hydraulic bearings for silent operation guarantee ultra-low noise. In addition, an anti-vibration mounting system strengthens the stability during operation.
The patented LED Ring maintains color and brightness uniformity; the lighting effect is visible from all sides and angles. The four-colored LED ring (in blue, red, white, and green) adds style to the chassis.

Taiwan Patent : M498806
China Patent : CN204498539U
US Application Patent : US9,506,663

P/N: CL-F038-PL12BU-A

Fan Dimension: 120 x 120 x 25 mm

Started Voltage: 9.0 V

Rated Voltage: 12.0 V

Rated Current: 0.2 A

Power Input: 2.4 W

Fan Speed: 1500 R.P.M, 1000 R.P.M (with LNC)

Max. Air Pressure: 2.01 mm-H2O

Max. Air Flow : 40.6 CFM

Noise:  24.6 dB-A, 18.7 dB-A (with LNC)

Bearing Type: Hydraulic Bearing

Life Expectation: 40,000 hrs,25℃

Connector: 3 PIN + LNC (Low-Noise Cable)

Weight : 158.8 g

Thermaltake combines the patented gorgeous LED light with cutting-edge technology to deliver a brand new experience of using PC cooling, the Thermaltake Riing Plus 14 LED RGB Radiator Fan TT Premium Edition. A 140mm high-static pressure fan with a patented 16.8 million colours LED ring and 12 controllable single LEDs, the Riing Plus 14 RGB features compression blades, hydraulic bearing and a digital fan controller, and can be controlled by the patented Riing Plus RGB Software. Cool your system with high performance Thermaltake Riing Plus 14 RGB Fans.

The new Core X71 Tempered Glass Edition full tower chassis by Thermaltake features an enlarged 4mm thick tempered glass window, two preinstalled 140mm Ring Blue fans, and its groundbreaking interior design that offers full assembly capacity and expandability for PC enthusiasts to create an advanced or a massive liquid cooling system. The Core X71 is an ideal choice for those who are looking for a chassis with superior expansion and unparalleled cooling performance!.

Thermaltake combines the patented LED light with cutting-edge technology to deliver a brand new experience of using PC cooling, Thermaltake Riing 12 LED Radiator Fan. A 120mm high-static pressure fan with a patented LED ring, the Riing 12 LED Series features compression blades for impressive cooling performance, hydraulic bearing with ultra-silent design, and anti-vibration mounting system. Cool your system with high performance Thermaltake Riing 12 LED Series!Tt LCS CertifiedTt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.Thermal Image TestCompared to the standard case fan, the combination of three Riing 12 radiator fans and RL360 radiator delivers 40% better cooling performance. (Inlet and outlet temp. are 49? and 44.5? in respective, ?T= 4.5?).Concentrated Compression BladeCustom designed for high-static pressure requirements of demanding applications such as radiators, the Concentrated Compression Blade (CCB) is engineered to focus the inner weaker circle of air outwards, allowing the outer section to pressurize and compress the air. Wind Blocker FrameTo achieve maximum cooling performance in all applications, the wind blocker frame is designed to direct airflow towards the middle section of the blade, thereby creating a compression effect and blocking any air from escaping. This special design reduces the bladeÆs noise and vibration, creating a perfect balance between power and sound.Hydraulic Bearing with Low-Noise DesignThe hydraulic bearing…

The Suppressor F31 Tempered Glass Edition mid-tower chassis features a durable 4mm thick tempered glass window, a preinstalled 140mm Riing Blue fan, leading-edge sound reduction panels on all sides, and its outstanding system ventilation. With the unparalleled expandability for high-end configurations and liquid cooling system, the Suppressor F31 supports the latest PC hardware, and all high-end GPU solutions. Thermaltake Suppressor F31 demonstrates the perfect balance in silent operation and cooling performance.

Case Type: Mid Tower
Dimension (H x W x D): 497 x 250 x 515mm (19.5 x 9.8 x 20.3 inch)
Net Weight: 10.6 kg / 23.4 lb
Side Panel: Tempered Glass Side Panel
Color: Exterior & Interior : Black
Material: SPCC

Cooling System:
Front (intake): 140 x 140 x 25 mm Turbo fan (1000rpm, 16dBA)
Rear (exhaust): 140 x 140 x 25 mm Riing LED Blue fan (1400rpm, 28dBA) x 1 (1000rpm, 22dBA with LNC)

Drive Bays
Accessible: 2 x 5.25”
Hidden: 3 x 2.5”/3.5”with HDD Cage

Expansion Slots: 8+2
Motherboards: 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)
I/O Ports: USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1
PSU: Standard PS2 PSU (optional)

Fan Support
Front: 2 x 120mm, 2 x 140mm, 1 x 200mm
Top: 3 x 120mm, 3 x 140mm, 2 x 200mm
Rear: 1 x 120mm, 1 x 140mm
Bottom: 2 x 120mm, 2 x 140mm

Radiator Support
Front: 1 x 360mm, 1 x 280mm
Top: 1 x 360mm, 1 x 280mm
Rear: 1 x 120mm, 1 x 140mm
Bottom: 1 x 120mm, 1 x 140mm

Clearance
CPU cooler height limitation: 180mm
VGA length limitation: 278mm (with HDD rack), 420mm (without HDD rack)
PSU length limitation: 180mm (With One Bottom Fan), 220mm (Without Bottom Fan)

The latest Ring 14 LED RGB radiator fan Tt premium Edition is a patented LED circular 256 multicolored 140mm radiator fan with Ring RGB software. Through the software, users can easily adjust fan speed as well as fan colors for up to 16 digital fan hubs which are 48 Ring RGB fans. The fan blades are optimized to generate large Air volume and achieve the best cooling performance. In addition, the Ring RGB fan features hydraulic bearing which guarantees ultra-low noise. The four corners of the fan are also designed with anti-vibration pads to strengthen the stability during operation.

12 Separately Controlled RGB LEDs for unrivaled Lighting ControlPatented Ring Plus RGB Software Enabled9-Blade High-Static Pressure DesignHydraulic Bearing Low-Noise DesignLink Capable up to 16 Controllers (80 Fans)
