The PanaVise 381 vacuum base PanaVise is a work-holding tool base and head combination designed for use on smooth, non-porous surfaces away from traditional work benches. The base includes a smooth rubber pad and lever combination which creates a vacuum that secures the unit to surfaces. The head assembly component opens to 2-1/2″ (63.5 mm), and clamps down with smooth insulated nylon jaws for gentle holding power. Other features include rugged, yet lightweight construction and a PanaVise “split-ball” adjustment element utilizing single-knob controls for head adjustment on three separate planes (tilt, turn and rotate).

Two-piece work-holding tool that creates a vacuum securing its base to smooth surfaces.
View larger.

Portable Clamp-free Holding Power

The 381 vacuum base PanaVise is a portable two-piece work-holding tool suitable for hobby, electronics and small home repairs, that consists of the PanaVise 380 vacuum base and the 303 standard vise head. The base component of the unit adheres to smooth, non-porous surfaces via the vacuum action that the rubber pad and flip handle at its bottom create when engaged. The vacuum action creates a stable and reliable working platform that eliminates the need for traditional bench clamps or weighted accessories. The combined unit weighs 2.8 lbs. (1.3 kg), is portable and easy to transport. The rubber vacuum pad is replaceable if its holding power is ever compromised by wear.

The standard 303 vise head assembly utilizes smooth, removable nylon jaws along its opening that measure 2-1/2″ (63.5 mm) by 1/2″ tall (12.6 mm). These secure tough small jobs without scratching and offer excellent electrical insulation and gentle holding power. The overall vise opening width between jaws is 2-1/4″ (57.1 mm). Because exposure to heat sources is common in vise applications such as gluing, circuit board wiring, jewelry making and use around handheld power tools, the vise head assembly is continuously heat tolerance to 200 degrees F (93 degrees C), and intermittent heat tolerant up to 300 degrees F (149 degrees C).

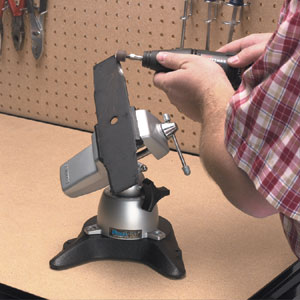

Dependable placement along horizontal or vertical planes where the vise is needed.
View larger.

Convenient adjustability across three separate planes.
View larger.

Tilt, Turn and Rotate Functionality

The PanaVise 381 work-holding tool utilizes PanaVise “split-ball” adjustment functionality at the point of 380 vacuum base and the included 303 standard head. Once an item is secured in the vise head, the split-ball system built into the top portion of the base allows a user to maneuver the item along three separate planes using a single knob to make the adjustments. The mobility range of the model 381’s split-ball system is a 90-degree tilt to the side, along with either an angled rotation, or level turn range of 360 degrees. This range of mobility allows a user to rearrange work items into any position, which limits the need to adjust the overall position of the vise or the item within the vise.

Additional Vise Head Options

In addition to the uses possible with the included, the 381 vacuum base PanaVise is intended for use across a wide range of applications and is designed to be compatible with a variety of vise heads. The base works with all PanaVise 300 series vise heads, the PV Jr. model 203 head or any 5/8″ diameter shaft tool accessory.

Key Features

• Vacuum base and vise head combination for portable use on any smooth, non-porous surface
• Rubber pad of base creates vacuum action that hold tool on vertical or horizontal planes
• Flip lever allows for fast engagement and disengagement of vacuum
• The easy-to-use “split-ball” adjustment element utilizes single-knob controls for head movement through three separate planes
• Rubber vacuum pad is replaceable
• Base is compatible with additional 300 series vise heads, or any 5/8″ diameter shaft tool accessory (all sold separately)
• Heat-tolerant nylon jaws

Specifications

What’s in the Box?

• PanaVise 381 Vacuum Base PanaVise (380 vacuum base, 303 standard vise head)
• User’s manual and warranty information

Limited Lifetime Warranty

All PanaVise products are warranted against defective materials and/or workmanship to all original consumer owners from the date of original consumer purchase for the lifetime of ownership by the original consumer owner. In the event of defective materials and/or workmanship, PanaVise Products, Inc. will, without charge, repair or replace, at its option, the defective product within 60-days from the receipt of the defective product. The Warranty does not apply to damage not resulting from defective materials and/or workmanship while in the possession of the original consumer or to unreasonable use by the original consumer, which includes but is not limited to improper installation, or failure to provide reasonable and necessary maintenance.

About PanaVise

Founded in 1957 by tool and die maker Otto Colbert and currently headquartered in Reno, Nevada, PanaVise is a leader in work-holding products. Over the years, a natural outgrowth of this expertise has been continued development of other items which hold things securely and offer a wide range of motion. Important areas in which this has been applied include, Electronics, CCTV Camera Mounts, and Audio/Video Mounts, earning PanaVise the nickname the “the hold it anywhere you want it company.”

The PanaVise 380 vacuum base is a compact and portable work-holding tool base designed to attach to smooth, non-porous surfaces away from traditional work benches. The base features a smooth, lower-aligned rubber pad and lever combination which creates a vacuum that secures the unit to surfaces. It also features lightweight construction, a shaft diameter acceptance of 5/8″ (15.9 mm), compatibility with multiple tool and vise head options and a “split-ball” adjustment element utilizing single-knob controls for head movement through 3 separate planes (tilt, turn and rotate).

Pad and lever create a vacuum securing the base to smooth surfaces.
View larger.

Portable Clamp-free Holding Power

The PanaVise vacuum base is a work-holding tool component that utilizes a rubber pad integrated into its bottom edge to stick to smooth, non-porous surfaces. Combined with a compatible PanaVise 300 vise head, or any 5/8″ (15.9 mm) diameter shaft accessory (sold separately), this creates a portable vise suitable for use in small-to-medium-sized jobs. Vacuum action is created as a turn of the base’s flip handle lifts the middle portion of its smooth rubber pad away from a consistent seal against a smooth, clean surface. The vacuum is released with a reverse flip of the same lever. The base and any attached vise head or other head accessories are sufficiently immobilized at the remaining contact points along the base’s edge. This holding power means that the base does not require traditional bench clamps or weighted accessories, which in turn means that the weight of the base can be kept at a portable 1.7 lbs. (0.8 kg). The light weight allows for easy transport and convenient use away from work benches. The unit’s rubber vacuum pad is replaceable if its holding power is ever compromised by wear.

Dependable placement along horizontal or vertical planes (vise head sold separately).
View larger.

Convenient adjustability across three separate planes and lightweight construction (vise head sold separately).
View larger.

Multiple Vise Head Options

The PanaVise 380 Vacuum Base is intended for use across a wide range of applications, and so is compatible with a large range of vise heads. The base works with all PanaVise 300 series vise heads, as well as the PV Jr. 203 head, or any 5/8″ diameter shaft accessory.

Tilt, Turn and Rotate Functionality

The PanaVise 380 vacuum base utilizes PanaVise single-knob “split-ball” functionality at the point of contact with installed vise heads and accessories. Once a vise head is installed and an item is secured, the split-ball system allows for maneuvering the head element along three separate planes. The complete mobility range with the split-ball joint clamp system is a 90-degree tilt to the side, along with either an angled rotation, or a level turn range of 360 degrees. The mobility range allows a user to rearrange work items into any position, limiting the need to adjust the overall position of the vise, or the item within the vise.

Key Features

• Vacuum base for portable vise applications on any smooth, non-porous surface
• Flip lever allows fast engagement and disengagement of vacuum action on vertically or horizontally-oriented surfaces
• The easy-to-use “split-ball” adjustment element utilizes single-knob controls for head movement through 3 separate planes
• Compatible with all 300-series vise heads, or any 5/8″ diameter shaft accessory (all sold separately)
• Rubber vacuum pad is replaceable
• Suitable for small to-medium-sized projects, such as arts and crafts, model making, electronics, jewelry making and so on

Specifications

• Height: 3-1/4″ (82.5 mm)
• Weight: 1.7 lbs. (0.8 kg)
• Rotation: 360 degrees
• Turn: 360 degrees
• Pivot: 90 degrees
• Base pad footprint: 5-1/8″ x 4-1/4″
• Shaft diameter accepted: 5/8″ (15.9 mm)

What’s in the Box?

• PanaVise 380 Vacuum Base
• User’s manual and warranty information

Limited Lifetime Warranty

All PanaVise products are warranted against defective materials and/or workmanship to all original consumer owners from the date of original consumer purchase for the lifetime of ownership by the original consumer owner. In the event of defective materials and/or workmanship, PanaVise Products, Inc. will, without charge, repair or replace, at its option, the defective product within 60-days from the receipt of the defective product. The Warranty does not apply to damage not resulting from defective materials and/or workmanship while in the possession of the original consumer or to unreasonable use by the original consumer, which includes but is not limited to improper installation, or failure to provide reasonable and necessary maintenance.

About PanaVise

Founded in 1957 by tool and die maker Otto Colbert and currently headquartered in Reno, Nevada, PanaVise is a leader in work-holding products. Over the years, a natural outgrowth of this expertise has been continued development of other items which hold things securely and offer a wide range of motion. Important areas in which this has been applied include, Electronics, CCTV Camera Mounts, and Audio/Video Mounts, earning PanaVise the nickname the “the hold it anywhere you want it company.”

The PanaVise 335 magnet base mount is designed to utilize the power of its integrated magnet to provide dependable, but easily detatchable security for a variety of PanaVise work-holding tools in work settings dominated by metal surfaces such as machinery, truck beds, sheet metal and tool boxes. The base mount is composed of two pieces: a mount bolt circle with a triangular array of three pre-drilled and tapped holes, and a magnet located at its center. Compatible PanaVise work-holding tools — including the 201 PV Jr. vise, 300 and 305 bases, and associated vise combinations — attach the to mount bolt circle with 1/4″ screws (sold separately). After bases or vise combinations are attached, the magnet holds the entire assembly to any flat, ferrous metal surface. The 335 magnet base mount securely supports up to 5 lb. at a 90-degree angle. Its magnet is also slightly recessed into the mount bolt circle to avoid scratching metal surfaces during application and/or removal.

Specifications

• Magnetic holding power: Up to 5 lb. (2.3 kg) at a 90-degree angle
• Overall diameter: 4-1/3″ (2.28 mm)
• Height: 1/2″ (12.7 mm)
• Weight: 1 lb. (0.4 kg)
• Compatibility (PanaVise models): 201 PV Jr. vise, 300 and 305 bases

Limited Lifetime Warranty

All PanaVise products are warranted against defective materials and/or workmanship to all original consumer owners from the date of original consumer purchase for the lifetime of ownership by the original consumer owner. In the event of defective materials and/or workmanship, PanaVise Products, Inc. will, without charge, repair or replace, at its option, the defective product within 60-days from the receipt of the defective product. The Warranty does not apply to damage not resulting from defective materials and/or workmanship while in the possession of the original consumer or to unreasonable use by the original consumer, which includes but is not limited to improper installation, or failure to provide reasonable and necessary maintenance.

About PanaVise

Founded in 1957 by tool and die maker Otto Colbert and currently headquartered in Reno, Nevada, PanaVise is a leader in work-holding products. Over the years, a natural outgrowth of this expertise has been continued development of other items which hold things securely and offer a wide range of motion. Important areas in which this has been applied include, electronics, CCTV camera mounts, and audio/video mounts, earning PanaVise the nickname the “the hold it anywhere you want it company.”

The PanaVise 308 weighted base mount is an accessory for PanaVise work-holding tools that allows a user to work with heavier items without having to bolt down a vise or use traditional clamping devices, ensuring the work tool’s portability. The 308 weighted base mount is compatible with multiple PanaVise bases and vises, is constructed of cast iron molded into a special shape that encourages stability, and will not scratch surfaces that it is placed on.

A cast iron base mount for added work-holding tool stability.
View larger.

Two-winged, low-slung design adds extra stability when working on vise held items (base and head sold separately).
View larger.

Add Portable Stability with a Weight Base Mount

The PanaVise 308 weighted base mount is work-holding tool accessory that is designed to attach to various PanaVise vises and bases, and provides stability without the need for clamps or permanent surface attachment. The overall footprint of the 308 weighted base mount is 6-7/8″ deep x 7-1/2″ wide (174.6 mm x 190.5 mm). Its height is 1-3/16″ (30.2 mm) tall, weighs 5 lbs. (2.3 kg) and it is constructed out of solid cast iron. It distributes weight through its two-wing arm shape, which adds stability. Surfaces are protected by four non-marring, anti-skid pads that attach to bottom surface contact points.

Base Compatibility

The 308 weighted base mount is compatible with the PanaVise 201 PV Jr. vise, the 300 standard base and the 305 low-profile base. Connection is provided by three pre-drilled and tapped 1/4″-20 holes in the 308 weighted base mount’s upper surface. The holes match the triangular mounting hole configuration found in the compatible bases and vise. The 308 weighted base mount also has two additional pre-drilled 1/4″-20 holes at the edge of its left and right wings, which can anchor other work-holding tool accessories.

Key Features

• Cast iron base mount stabilizes bases and heads without the use of clamps
• Two forged wings spread weight distribution for extra stability
• Compatible with multiple PanaVise vises and vise bases
• Pre-drilled and taped holes for fast base mounting
• Additional tapped holes along wing edges for mounting of accessories
• Includes non-marring, anti-skid pads

Specifications

• PanaVise vise/vise base compatibility: 201 PV Jr. vise, and 300 and 305 bases
• Construction: cast iron
• Weight: 5 lbs. (2.3 kg)
• Height (with pads installed): 1-3/16″ (30.2 mm)
• Overall dimensions: 6-7/8″ deep x 7-1/2″ wide (174.6 mm x 190.5 mm)
• Pre-drilled and tapped mounting holes (1/4″-20):
  • 3 at top for mounting base
  • 2 side-oriented for accessory mounting

What’s in the Box?

• PanaVise 308 weighted base mount
• Four non-marring, anti-skid neoprene base pads
• User’s manual and warranty information
