Top 10 Frsky R9 Mm Long Range Receiver

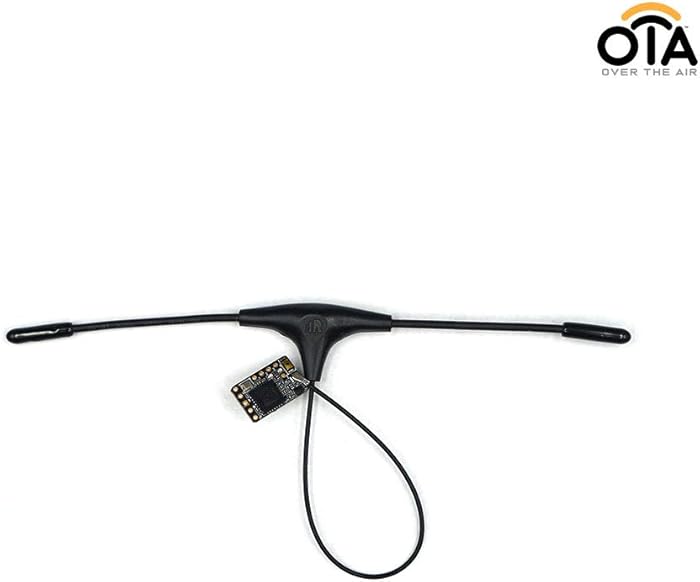

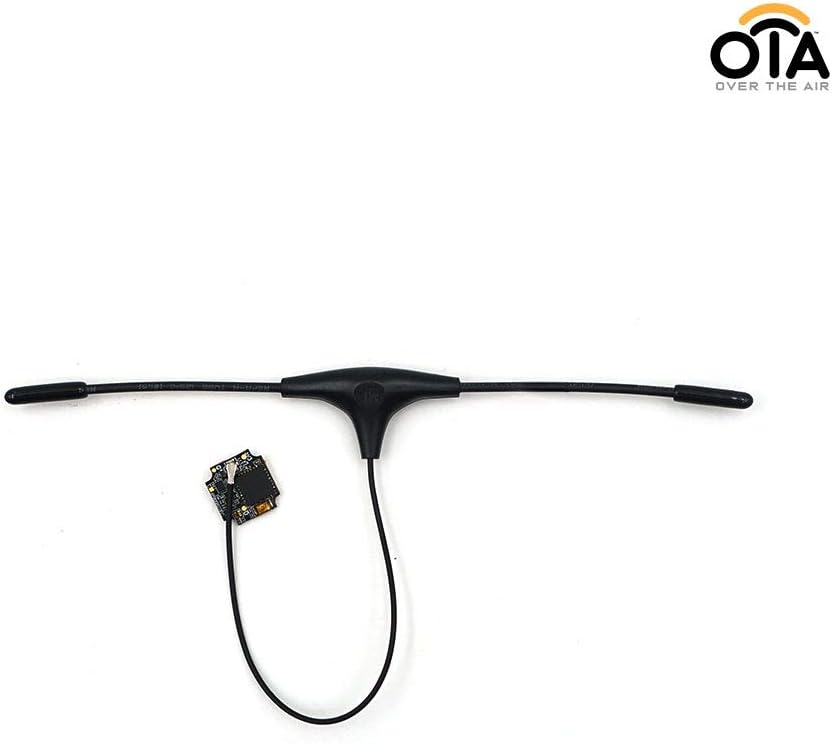

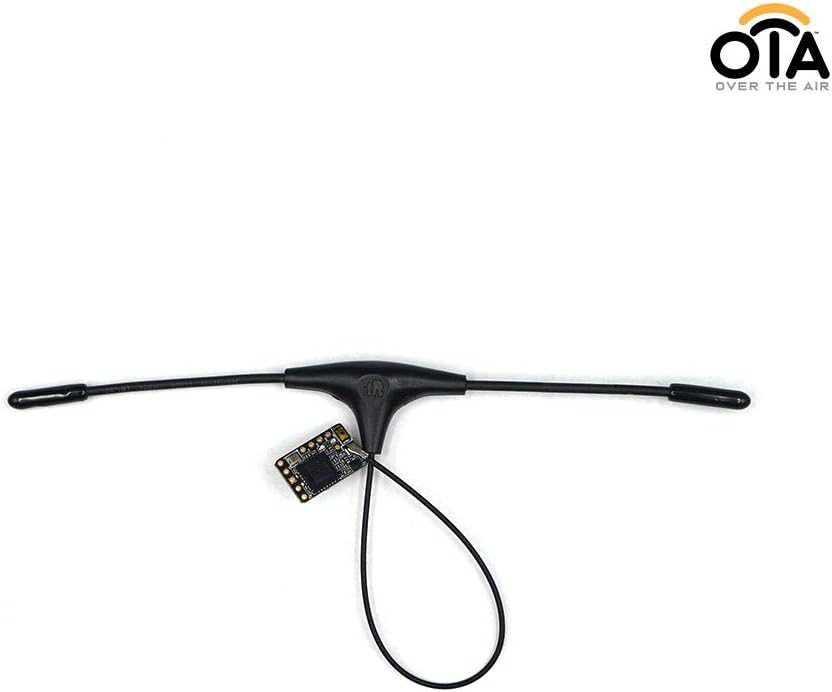

The 900MHz R9 Slim+ OTA receiver implements the ACCESS protocol and supports wireless firmware updates over the air making binding to receivers even easier. As well as the convenience of checking the current receiver firmware version.

The R9 Slim+ OTA is designed with dual antennas to improve signal strength. With a compact form factor design, it also features 6 PWM outputs, and this long range receiver with the flexibility to work with more external devices by incorporating the inverted SBUS and S.Port outputs.

SPECIFICATIONS

• Dimension: 32*13.5*5mm (L × W ×H)
• Weight: 4.3g (with antennas)
• Numbers of channel
           Non-LBT Version: 6/16CH (Telemetry)
           LBT Version: 6/16CH (Telemetry) / 6/16CH (No Telemetry)
• With RSSI Output : Analog 0~3.3V
• Operating Voltage Range: DC 3.5V~12.6V (1~3s Li-Battery)
• Operating Current: 100mA@5V
• Operating Range: up to 10km or above
• Compatibility: R9M 2019/R9M Lite/R9M lite Pro with ACCESS firmware

FEATURES

• ACCESS Protocol and support OTA functions
• Low latency and high precision
• Support S.Port / F.Port (Configurable in OpenTX / FrOS menu)
• With inverted SBUS and S.Port outputs
• Battery voltage detection supported
• Detachable Ipex1 connector antenna

FrSky Taranis X-Lite Description:

Get ahead of the curve with the next game changing transmitter from FrSky, the Taranis X-Lite. This revolutionary radio blends the functionality and reliability of FrSky Transmitters with a compact Game-Style controller. The X-Lite is ergonomically designed, featuring four switches and two sliders, which means you can still fly your Fixed-wing models as well as multirotors and helicopters. Compact in size means you can take it virtually anywhere. It features a Haptic Vibration Feedback System along with the voice and sound alert warnings. The X-Lite has the smoothest control possible with the pre-installed high precision M12 Lite hall sensor gimbals. The easy to access battery bay allows for quick, worry-free battery swaps. The X-Lite runs on the familiar OpenTX software, and the model memory is expandable with the addition of your own micro SD card. Like all of our new transmitters it has a wireless feature that lets you link up wirelessly to other FrSky radios for training; additionally, it can link up to the FrSky FreeLink App for monitoring telemetry and configuring receivers. Long range is an option with the support of the upcoming R9M Lite 915/868MHz module. Other features include Receiver Match, Real-Time Flight Data Logging and Super Low Latency for competitive flying. Overall this Radio has all the features of its predecessors in a smaller package at an unprecedented value.

Note: The X-LITE package doesn’t include batteries inside.

R9M Lite Descrip: R9M Lite module is a 900MHz frequency system which is specially designed for FrSky Taranis X-Lite transmitter. This being the “Lite” version of the R9 series works perfectly with all receivers in the R9 series. In addition, it gets super low latency and high precision thanks to the upgraded digital interface and high-speed data transmission. The R9M Lite has the extreme performance with the ability to achieve long distances with one RF power output at 100mW.
