798 reviews analysed

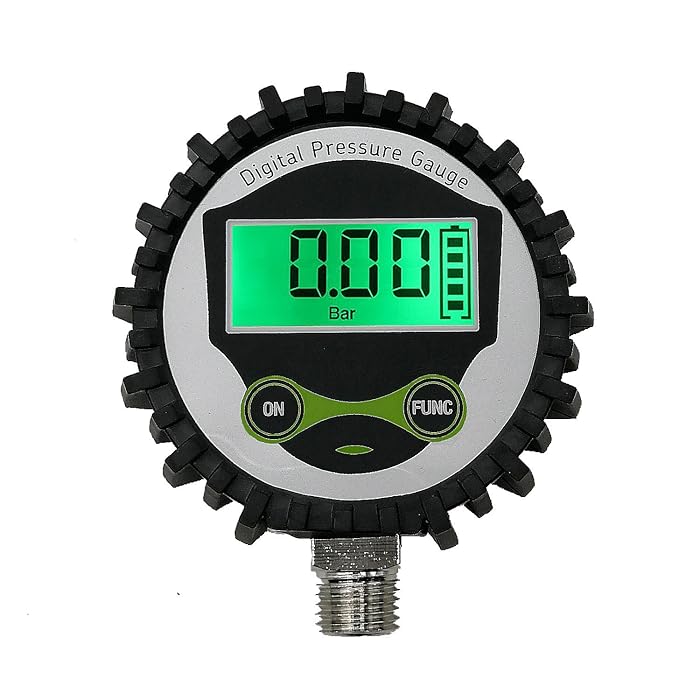

1. Digital Gas Pressure Gauge with 1/4” NPT Bottom Connector and Rubber Protector by Uharbour, 0-200psi, Accuracy 1% .F.S.
Feature
- 1. HIGH ACCURACY: performance tested & certified accurate to ±1% (Relative Humidity Temperature 25°C) with display resolution of 0.5 psi
- FOUR different measuring units to choose: 0 ~ 200 PSI, 0 ~ 14 BAR, 0 ~ 14 KGF/CM², 0 ~ 1400KPA.
- 2. WIDE APPLICATION for measuring gas and air pressure. It applies to these fields of pressure container, automation equipment, matching with laboratory equipment and all vehicles tires including heavy duty ones.
- 3. BATTERY SAVING: Power by 2 x LR03 AAA 1.5V (Included in the package). After measuring, the pressure gauge will turn off automatically after 150s of inactivity to preserve battery life.
- 4. HIGH QUALITY, shock resistance, vibration resistance and durable.
- 5. One year warranty, unconditionally new replacement or refund for any quality product.
2. Measureman 2-1/2" Dial Size, Oil Filled Pressure Gauge, 0-30psi/kpa, 304 Stainless Steel Case, 1/4"NPT Lower Mount
Description
Description
This liquid filled pressure gauge is designed for media which is not corrosive to brass, also where vibration and pulsation is a concern.
Dial size : 2-1/2″
Process connection : 1/4″NPT lower mount
Case : 304 stainless steel case and crimped ring
Window : Polycarbonate
Dial plate : aluminum, with pointer stop
Pointer : Aluminum, black, DIN style
Boudon tube : Copper alloy
Movement : Brass
Connection : Brass, one piece design
Oil cap : rubber, gray color
Filling : Glycerin filled, dampens the effect of vibration and pulsation; lubricates the movement and extends the life of gauge.
IP class : IP67
Accuracy : +/-3-2-3%
Range : 0-30psi/kpa dual scale, psi outside, kpa inside
Working temperature : -4 to 140 deg F/-20 to 60 deg C
Ambient temperature : 140 deg F/60 deg C maximum
Meaureman has 20 years rich experience in the measuring of pressure, temperature, flow, level industries, The “Measureman” branded products are the combination of continuous good quality and affordable price. “Measureman” products are selected and designed by professional engineers.
3. YZM Industrial Water ressure Gauge,304 Stainless Steel Dual Scale Pressure Gauge with Brass Internals, 0-220 psi,0-16 kg/cm2, 2-1/2" Dial Display, -3-2-3% Accuracy, 1/4" NPT,Bottom Mount.
Feature
- Pressure range:0-1.6MPa or 0-220 PSI,1/4″ NPT,Diameter of gauge: 2-1/2″
- LIQUID/GLYCERIN FILLED PRESSURE GAUGE,2.5″ FACE/DIAL 1/4″ MALE NPT CONNECTION
- Stainless steel case, Copper alloy wetted parts
- broad applications – water, oil, air and more
- Monitor the post R.O. water pressure and vital to the functionality of your RO system!
Description
Application: Water, Oil, Air & Hydraulic Application
Dial Size: 2-1/2″ Dial Size (Crimped Casing)
Accuracy: +/- 3/2/3% Scale: Dual Scale – PSI / Bar
Movement: Copper Alloy
Bourdon Tube: Copper Alloy
Window: Polycarbonate
Case: Stainless Steel case for protection in harsh environments
Connection: Copper Alloy Lower Mount; 1/4″ NPT (for 2-1/2″ dial)
Normal Ambient Temp.: -4F to +140F (-20C to +60C)
Liquid Filling: Glycerin oil filled to enhance the reliability and integrity; helps dampen the effect of vibration and pulsation; lubricates the movement and extends the life of gauge.
4. PIC Gauge PRO-201L-254A 30"-0 hg Vacuum PSI Pressure Gauge, 2 1/2" Dial, 1/4" Male NPT Connection, Bottom Mount, Dual Scale, Glycerin Filled, Stainless Steel Case/Bezel, Brass Internals & Plastic Lens
Feature
- Professional Grade Pressure Gauge. One piece design for toughness during installation.
- Measures air pressure, water pressure, fuel pressure, gas pressure, oil pressure, anything not corrosive to brass.
- Liquid filled for added durability in applications where vibration is present.
- Stainless steel case and bezel, copper alloy internals. ¼” Male NPT Bottom Connection.
- 30″ to 0 hg Vacuum PSI Pressure Gauge, Dual Scale PSI & Bar Scale, 2.5” Dial, 2-1-2% accuracy, Made to ASME B40.100 standard.
Description
PIC Gauge PRO-201L-254A 30″-0 hg Vacuum PSI Pressure Gauge, 2 1/2″ Dial, 1/4″ Male NPT Connection, Bottom Mount, Dual Scale PSI & Bar Scale, Glycerin Filled, Stainless Steel Case/Bezel, Brass Internals & Plastic Lens. Professional Grade Pressure Gauge. One piece design for toughness during installation. Measures air pressure, water pressure, fuel pressure, gas pressure, oil pressure, anything not corrosive to brass. Liquid filled for added durability in applications where vibration is present. Stainless steel case and bezel, copper alloy internals. ¼” Male NPT Bottom Connection. 30″ to 0 hg Vacuum PSI Pressure Gauge, Dual Scale PSI & Bar Scale, 2.5” Dial, 2-1-2% accuracy, Made to ASME B40.100 standard. Our PIC brand offers the largest selection of pressure and temperature instruments in the industry.
5. BACOENG Vacuum Pump & Manifold Gauge Set – HVAC A/C Refrigeration Kit – Diagnostic R12 R22 R134a R410A – w/Case
Feature
- Gauge Set — 2 Valve Manifold with sight-glass & 1/4″ SAE fittings anodized aluminum block body, oversized sight-glass for easy viewing the refrigerant flow high quality gauge and high accuracy of reading
- Vacuum Pump – Newly Designed Compact Vacuum Pump, Portable and Stronger. Flow rate: 3.6CFM Power: 1/4HP Ultimate Vacuum: 0.8Pa
- Accessory–3 × 4FT Blue Red Yellow Refrigrant Hose,2 × 1/4″ SAE Male to 5/16″ SAE Female Adapters（R410a）, 1 × Toolkit, 12oz Vacuum Oil, 1 × Manual for Pump and Gauge
- Hose– All hose are complied with SAE-J2196 standard standard. Hose Working pressure: 800PSI-4000PSI Acceptable refrigerant: CFC HCFC and HFC
- Multi-function Gauge– Ideal for R12 R22 R134a(Need Additional Quick Couplers) R410A R407C. Pressure and Temperature Displayed.
6. PIC Gauge S201L-254A 30"-0 hg Vacuum PSI Pressure Gauge, 2 1/2" Dial, 1/4" Male NPT Connection, Bottom Mount, Single Scale, Glycerin Filled, Stainless Steel Case/Bezel, Brass Internals & Plastic Lens
Feature
- Measures air pressure, water pressure, fuel pressure, gas pressure, oil pressure, anything not corrosive to brass
- Accuracy is 2-1-2% of span and works from 30 to 160 degrees F
- Liquid filled for added durability in applications where vibration is present
- Stainless steel case and bezel, copper alloy internals. ¼” Male NPT Bottom Connection
- 30″ to 0 hg Vacuum PSI Pressure Gauge, Single Scale, 2.5” Dial. Ideal for pumps and compressors
Description
PIC Gauge S201L-254A 30″-0 hg Vacuum PSI Pressure Gauge, 2 1/2″ Dial, 1/4″ Male NPT Connection, Bottom Mount, Single Scale, Glycerin Filled, Stainless Steel Case/Bezel, Brass Internals & Plastic Lens. Measures air pressure, water pressure, fuel pressure, gas pressure, oil pressure, anything not corrosive to brass. Accuracy is 2-1-2% of span and works from 30 to 160 degrees F. Liquid filled for added durability in applications where vibration is present. Stainless steel case and bezel, copper alloy internals. ¼” Male NPT Bottom Connection. 30″ to 0 hg Vacuum PSI Pressure Gauge, Single Scale, 2.5” Dial. Ideal for pumps and compressors. Our PIC brand offers the largest selection of pressure and temperature instruments in the industry.
7. Winters PFQ Series Stainless Steel 304 Dual Scale Liquid Filled Pressure Gauge with Brass Internals, 30" Hg Vacuum-0-15 psi/kpa,2-1/2" Dial Display, +/-1.5% Accuracy, 1/4" NPT Bottom Mount
8. HFS 2-1/2" Oil Filled Vacuum Pressure Gauge – SS/Br 1/4" NPT Lower Mount -30HG/0
Description
Dial Size: 2-1/2″ Dial Size (Crimped Casing)
Accuracy: +/- 3/2/3%
Scale: Dual Scale – PSI / Bar
Movement: Copper Alloy
Bourdon Tube: Copper Alloy
Window: Polycarbonate
Case: Stainless Steel case for protection in harsh environments
Connection: Copper Alloy Lower Mount; 1/4″ NPT (for 2-1/2″ dial)
Normal Ambient Temp.: -4F to +140F (-20C to +60C)
Liquid Filling: Glycerin oil filled to enhance the reliability and integrity;
helps dampen the effect of vibration and pulsation;
lubricates the movement and extends the life of gauge.
9. Winters PEM Series Steel Dual Scale Economy Pressure Gauge, 0-30 psi/kpa, 1-1/2" Dial Display, +/-3-2-3% Accuracy, 1/8" NPT Bottom Mount
Feature
- Brass wetted parts for measuring non-corrosive liquid and gas pressure
- Circular dial is enclosed in a steel case for corrosion resistance
- Measures pressure with dual scale (psi/kPa)/(Hg. vacuum/kPa)
- Display accuracy is + or – 3/2/3% over the entire range of the gauge (ASME B40.100 Grade B)
- Lower mount or center back male connection with either 1/8″ or 1/4″ NPT rate
Description
The Winters PEM series pressure gauge with brass wetted parts has a circular dial enclosed in a steel case and a male connection, and measures pressure with a dual scale (psi/kPa)/(Hg. vacuum/kPa) with an accuracy of + or – 3/2/3%. The brass wetted parts are for measuring non-corrosive liquid and gas pressure. The black-painted steel case is Ingress Protection certified IP52 for protection against dust or liquids. The circular dial comes in 1.5″ (40 mm), 2″ (50 mm), 2.5″ (63 mm), and 4″ (100 mm) diameters. The dial has an aluminum black pointer. The lens for the 1.5″, 2″, and 2.5″diameter dials is polycarbonate for high impact resistance. The lens for the 4″ diameter dial is glass for strength and clarity. The gauge measures pressure with a dual scale of either psi/kPa or Hg. vacuum/kPa. The gauge is accurate to + or – 3/2/3% over the entire range of the gauge, American Society of Mechanical Engineers (ASME) B40.100 Grade B accuracy class. The male connection is mounted on the bottom or center back of the gauge and has either a 1/4″ NPT (National Pipe Thread) or 1/2″ NPT rate. The bourdon tube is phosphor bronze, the movement is brass, and the welding is silver alloy. The over-pressure limit is 25% of full scale value. The working pressure is a maximum of 75% of full scale value. The operating temperature is -40 to 150 degrees F (-40 to 65 degrees C). This pressure gauge is suitable for plumbing, heating, air conditioning, pneumatic, hydraulic, water tanks, and air compressors.
Pressure gauges are instruments used to measure the pressure of a gas or liquid inside a vessel and, often, to help ensure the optimal amount of pressure for a given application. Pressure gauges can range from everyday instruments, such as those used to measure the air pressure in a car or bicycle tire, to highly accurate gauges used in mechanical and industrial processing. Most often, pressure gauges measure pressure relative to another reference. For instance, gauge pressure measures pressure relative to ambient air. An example of a pressure gauge measuring relative to ambient air is a tire pressure gauge or a blood pressure gauge. Differential pressure is the difference in pressure between two points, such as when measuring liquid flow along various points in a pipeline. An absolute pressure gauge measures pressure relative to a perfect vacuum, such as an atmospheric or barometric pressure gauge. All types of pressure gauges include either a male or a female mount to connect to the vessel where pressure is being measured, and display results on a dial with varying increments of measure across a given range.
Winters Instruments manufactures pressure gauges, thermometers, diaphragm seals, pressure transmitters, and switches. The company, founded in 1953, is headquartered in Toronto, Canada.
10. Winters PEM Series Steel Dual Scale Economical All Purpose Pressure Gauge with Brass Internals, 30"Hg Vacuum/kpa, 2" Dial Display, +/-3-2-3% Accuracy, 1/8" NPT Bottom Mount
Feature
- Brass wetted parts for measuring non-corrosive liquid and gas pressure
- Circular dial is enclosed in a steel case for corrosion resistance
- Measures pressure with dual scale (psi/kPa)/(Hg. vacuum/kPa)
- Display accuracy is + or – 3/2/3% over the entire range of the gauge (ASME B40.100 Grade B)
- Lower mount or center back male connection with either 1/8″ or 1/4″ NPT rate
Description
The Winters PEM series pressure gauge with brass wetted parts has a circular dial enclosed in a steel case and a male connection, and measures pressure with a dual scale (psi/kPa)/(Hg. vacuum/kPa) with an accuracy of + or – 3/2/3%. The brass wetted parts are for measuring non-corrosive liquid and gas pressure. The black-painted steel case is Ingress Protection certified IP52 for protection against dust or liquids. The circular dial comes in 1.5″ (40 mm), 2″ (50 mm), 2.5″ (63 mm), and 4″ (100 mm) diameters. The dial has an aluminum black pointer. The lens for the 1.5″, 2″, and 2.5″diameter dials is polycarbonate for high impact resistance. The lens for the 4″ diameter dial is glass for strength and clarity. The gauge measures pressure with a dual scale of either psi/kPa or Hg. vacuum/kPa. The gauge is accurate to + or – 3/2/3% over the entire range of the gauge, American Society of Mechanical Engineers (ASME) B40.100 Grade B accuracy class. The male connection is mounted on the bottom or center back of the gauge and has either a 1/4″ NPT (National Pipe Thread) or 1/2″ NPT rate. The bourdon tube is phosphor bronze, the movement is brass, and the welding is silver alloy. The over-pressure limit is 25% of full scale value. The working pressure is a maximum of 75% of full scale value. The operating temperature is -40 to 150 degrees F (-40 to 65 degrees C). This pressure gauge is suitable for plumbing, heating, air conditioning, pneumatic, hydraulic, water tanks, and air compressors.
Pressure gauges are instruments used to measure the pressure of a gas or liquid inside a vessel and, often, to help ensure the optimal amount of pressure for a given application. Pressure gauges can range from everyday instruments, such as those used to measure the air pressure in a car or bicycle tire, to highly accurate gauges used in mechanical and industrial processing. Most often, pressure gauges measure pressure relative to another reference. For instance, gauge pressure measures pressure relative to ambient air. An example of a pressure gauge measuring relative to ambient air is a tire pressure gauge or a blood pressure gauge. Differential pressure is the difference in pressure between two points, such as when measuring liquid flow along various points in a pipeline. An absolute pressure gauge measures pressure relative to a perfect vacuum, such as an atmospheric or barometric pressure gauge. All types of pressure gauges include either a male or a female mount to connect to the vessel where pressure is being measured, and display results on a dial with varying increments of measure across a given range.
Winters Instruments manufactures pressure gauges, thermometers, diaphragm seals, pressure transmitters, and switches. The company, founded in 1953, is headquartered in Toronto, Canada.
Conclusion
By our suggestions above, we hope that you can found 12 Vacuum Gauge for you.Please don’t forget to share your experience by comment in this post. Thank you!
